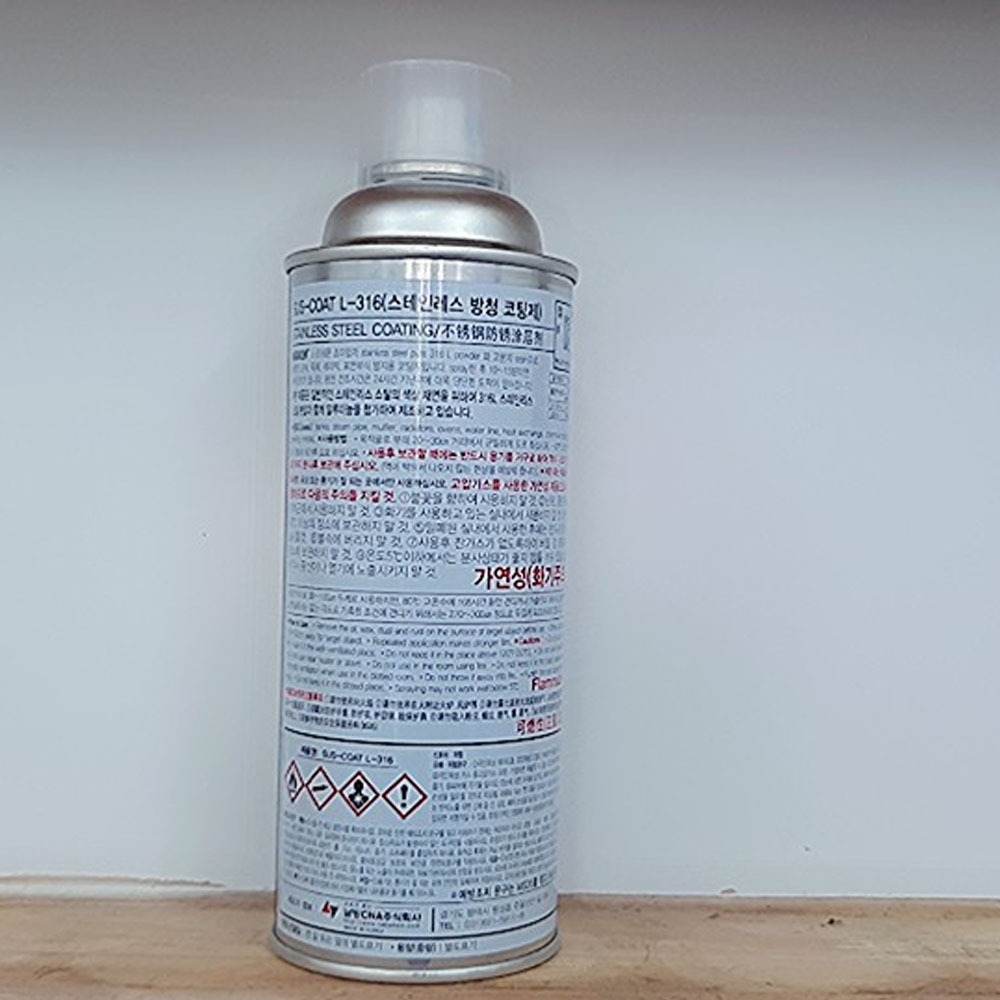

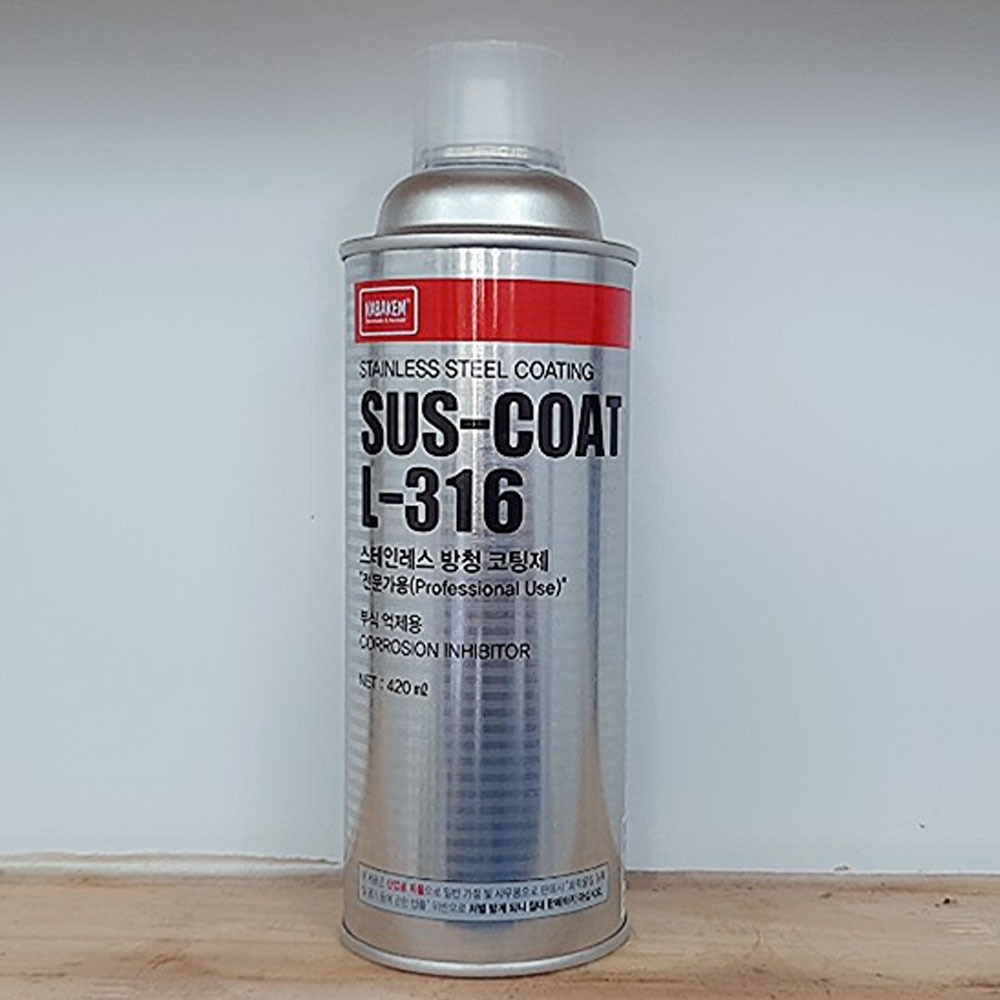

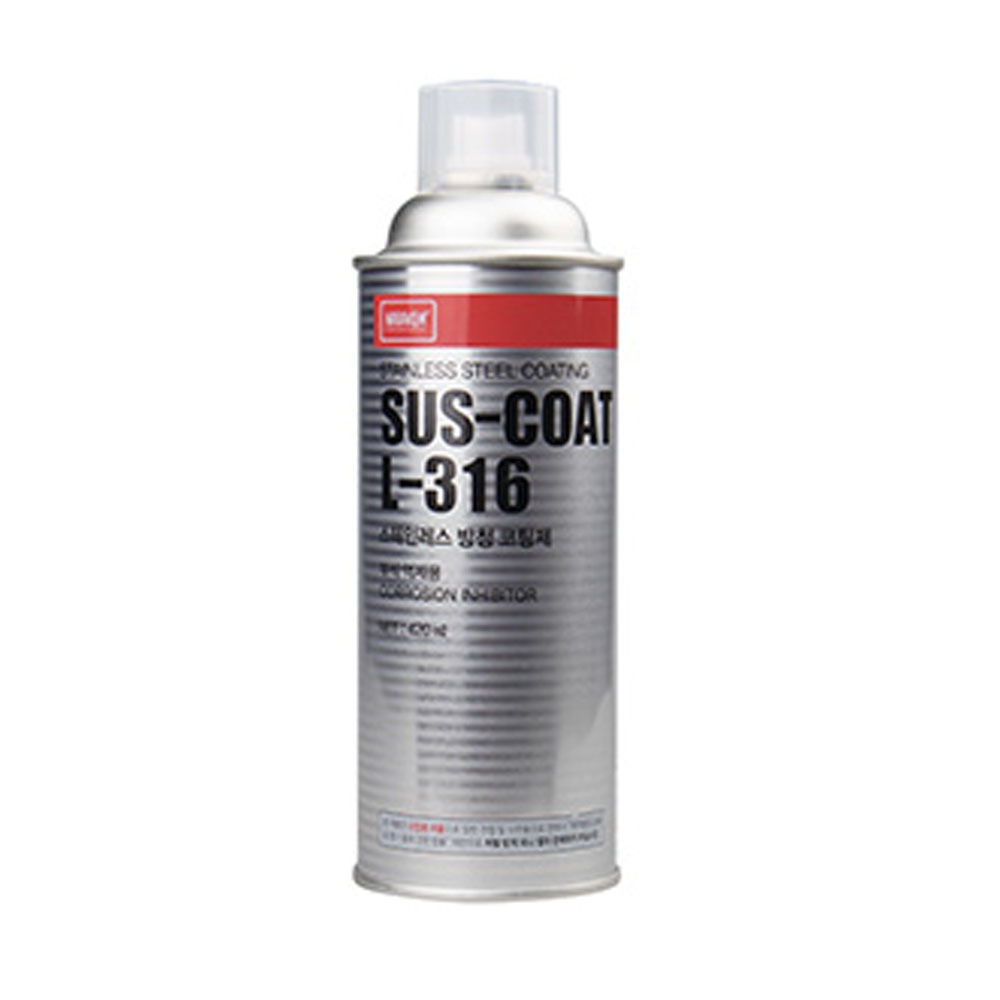

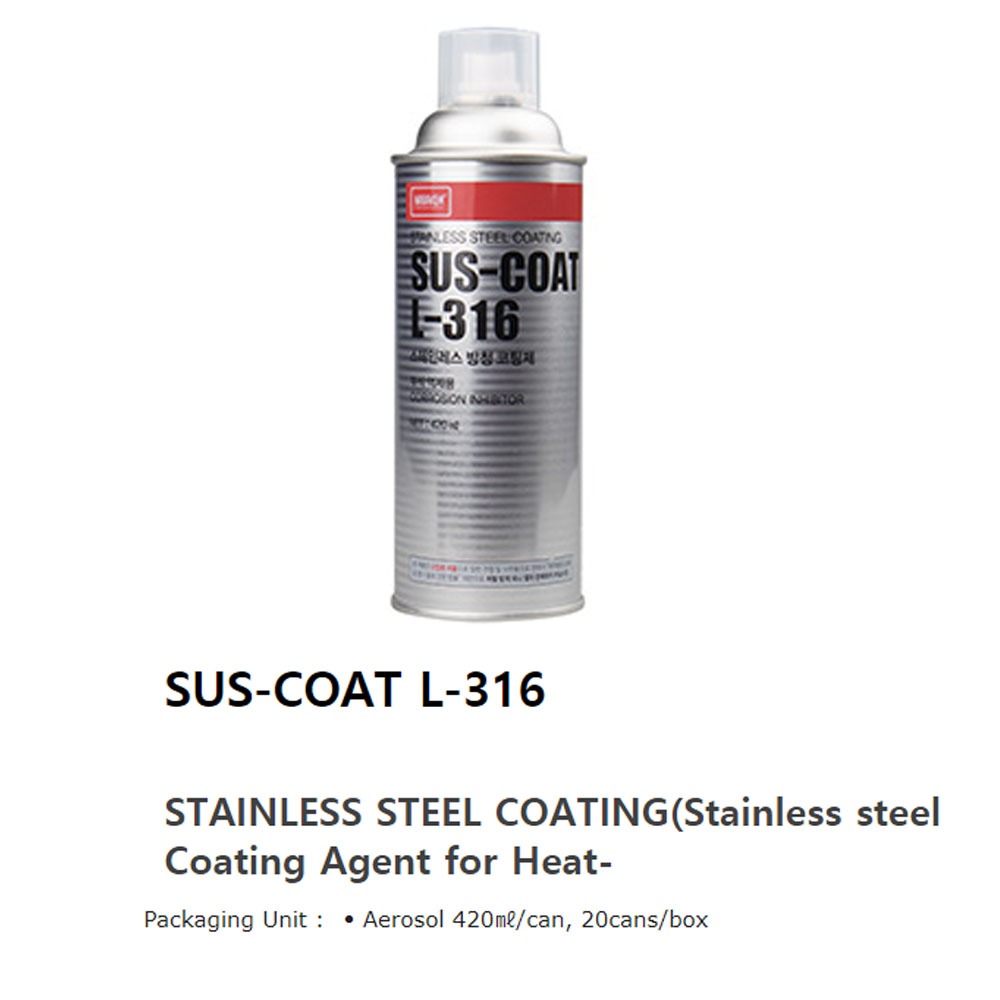

SUS-COAT L-316 - STAINLESS STEEL COATING

Coating Agent for Heat

Packaging Unit: Aerosol 420㎖/can, 20cans/box

Like other coating agents applied with a brush, roller or sprayer, SUS-COAT L-316 easily forms a consecutive barrier coating of stainless steel 316L to provide perfect protection. This stainless steel flake pigment is produced to 0.3μ thick and 30μ wide (1 thickness: 100 width) under strict quality control and finished like polished mirror on both faces with every leaf-shape sheet. Different from other coating agents in powder, SUS-COAT L-316 provides superior protection against water,moisture, heat, big damage and even abrasion, as the pigment flakes tend to pile up on one another and form a continuous high-density coating layer. This can form a stainless barrier coating on the surfaces such as metals, wood, stone, ceramic, brick, concrete, mortar, glass, plastic, rubber, leather or paper. Its strong stainless coating allows all types of materials to be protected against corrosion, erosion, rust, abrasion, heat damage or pollution for a long time.
With its high economic feasibility, it can be used in very small amount.
Thanks to its superior heat/sun reflections, lower thermal conductivity and high thermal effectiveness of stainless steels, this can also be used for tank, boiler, freezer or cold store, duct (water pipe), air
conditioner pipes, roofs and etc. to save energy.
※ In order to have an appearance of the color of a stainless steel, this product contains aluminum(AI).

Features
SUS-COAT L-316 is an epochal coating agent developed by the demands of harsh industrial environments and provides a unique pigment shape and the well-known protective features of stainless steels against rust, oxidation, chemical reaction, erosion, corrosion, water, moisture, heat or pollution for long time.


UV Protection & Anti-Weathering;
Every leaf-shaped pigment flake piled up on another forms a high-density, consecutive barrier coating and protects against UV radiation and air pollution. If left uncared for over a long time, it keeps its lustrous, solid and smooth surface.

Thermal Insulation & Preservation;
The surface applied with SUS-COAT L-316 is reduced in the radioactivity of far infrared radiation by the polished leaf-shaped pigment. That is, it is increased in thermal insulation and preservation, which leads to both great savings of costs including cleaning and maintenance, efforts and time and the uses for boiler, air conditioner pipes, duct (water pipe), oven, steelworks, casting, glass, freezer or cold store, kiln, roof or
tank and etc.

Anti-Abrasion;
SUS-COAT L-316 provides superior protection against mechanical damage or abrasion, while other metal coatings or paints for industrial applications can’t prevent from damage or abrasion, due to rather thin film coating. SUS-COAT L-316 has excellent durability and solves troublesome building maintenance caused by damage or abrasion.


Moisture-Proof & Water Resistance;
High-density, piled-up, laminated structure of stainless pigment provides a thick waterproof coating that cuts off air, water or moisture and extends its lifespan of all types of materials. It also offers excellent effects to block moisture or water from reaching the cracked area.


Heat Resistance;
In general, aluminum powder pigmented heat-resistant paints provide quick heat transfer and tend to quicken the deterioration of the coatings. In case of severe changes in temperature, they can cause separation or cracking of the coating caused by repetition of swelling and contraction of pigments. However, SUS-COAT L-316 provides a special binding service to inhibit heat transfer by forming the laminated structure of stainless pigment and reflecting heat. Accordingly, it can exhibit excellent durability without heat deterioration, separation or cracking.


Uses
Vessels, vehicles, power plant facilities, buildings, outdoor steel structures, machinery and etc.


How to Use
Remove oil, wax, dust or rust on the target surface before use.
Spray (Aerosol type);
Shake well for 1 minute to make a clicking noise, before spraying.
Spray evenly over the pre-treated surface.
Spray from 30cm distance.
For a better result, several light coats are better than one coat that is too thick.
Shake well from time to time, as metals can be deposited during long-time coating process.
Air Spray Gun (Bulk type);
Be sure to stir before use.
Spray evenly over the pre-treated surface, like usual paints.
Shake well from time to time, as metals can be deposited during long-time coating process.

Brush (Bulk type);
Spray evenly over the pre-treated surface.
Apply in one direction, to avoid brush marks.
Shake well from time to time, as metals can be deposited during long-time coating process.
